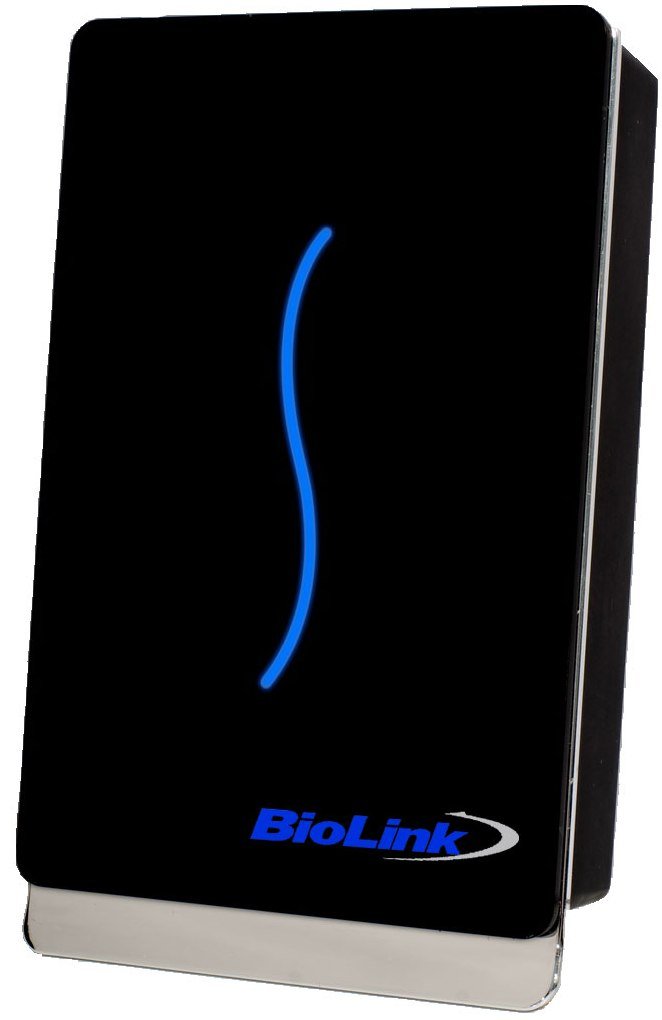

BioLink SC-NET

BioLink SC-NET is a network-enabled contactless card reader with an embedded controller for access control and T&A systems. Components Mifare card reader Door hardware controller Tri-color LED Buzzer Communication interfaces: Ethernet, Wiegand In/Out, RS 232/485    Download the leaflet on SC-NET

Key Features

• Fully integrated with BioTime for enterprise-wide time management and access control
• Built-in controller to operate electromechanical, - magnetic locks, turnstiles, etc.
• Connection to alarm system, door sensor and exit button
• Operation modes: standalone or network
• Fast identification speed. Card read time less 0.03 sec
• Flash memory stores up to 50,000 events and up to 30,000 cards
• Stylish innovative design
• Tri-color LED indicator and buzzer to notify employee on successful/failed identification
• Web-interface to view, copy and edit data remotely
• Water/dust resistant plastic housing

Operation

The device reads contactless card to identify a user; the relevant clock-in/clock-out event is recorded.

BioLink SC-NET compares the data in the card with the database in its memory: if the same IDs are detected, LED illuminates green, otherwise it flashes red.

The event is recorded in the internal memory of the device and subsequently synchronized with the central BioTime database (in network mode).

Once access is granted, the embedded controller sends a signal to open the door.

Identifiers

• Mifare contactless cards
• Optional - HID/iClass cards

User Notification on Successful/Failed Identification

• Color indication:

          •    blue – standby mode

          •    red – access denied

          •    green – access granted

• Audio indication

BioLink SC-NET & BioTime

Contactless reader BioLink SC-NET can be used as a component of BioLink BioTime© T&A and Access Control system.

It restricts employee’s access to offices, server rooms and inventories.

If used for the first time, the database with employees’ information is automatically downloaded via the network from the central BioTime server.

Real-time registration of clock-in/clock-out and similar events (lunch, meeting, etc.) by using an employee’s card; the data collected is transferred to the BioTime server.

If the network temporarily fails, records are accumulated in the device internal memory and, once connection is restored, are automatically communicated to the server.

The reader can be used as a standalone device. If BioLink SC-NET has no network access, the data can be copied to a laptop for subsequent transfer to the BioTime server.

Installation & Application

• Ethernet interface
• The only requirements for mounting are power supply and Ethernet cable.
• Optional power supply via Ethernet (POE)
• The delivery set comprises all items required for mounting (mounting template, wall mount, self-tapping screws and screwdriver).

BioLink SC-NET: network-enabled card reader
Identifiers	Contactless cards
Types of Cards	Mifare / HID / iClass
Read Range	50-100 mm
Access Control	Controller of door hardware
Tamper Alarm Detection	Yes
Identification Speed	< 0,03 sec
Cards in Memory	30,000
Clock-in/Clock-out Events in Memory	50,000
Display	No
Keypad	No
Interfaces	Ethernet, Wiegand In/Out, RS 232/485
POE	Yes
Power Supply	12 V / 3 А
Indicators	Tri-color LED
Dimensions (L x H x W)	153 x 95.5 x 35.5 mm
Operating Temperature Range	32°F to 105°F (0°C to 45°C)
Recommended Temperature Range	23°F to 82°F (10°C to 35°C)
Atmospheric Pressure	Normal
Housing	ABS plastic
Design	Wall-mounted device
Operation Modes	Standalone device
	Component of BioTime
